DB Cable Gate 0.5m Set

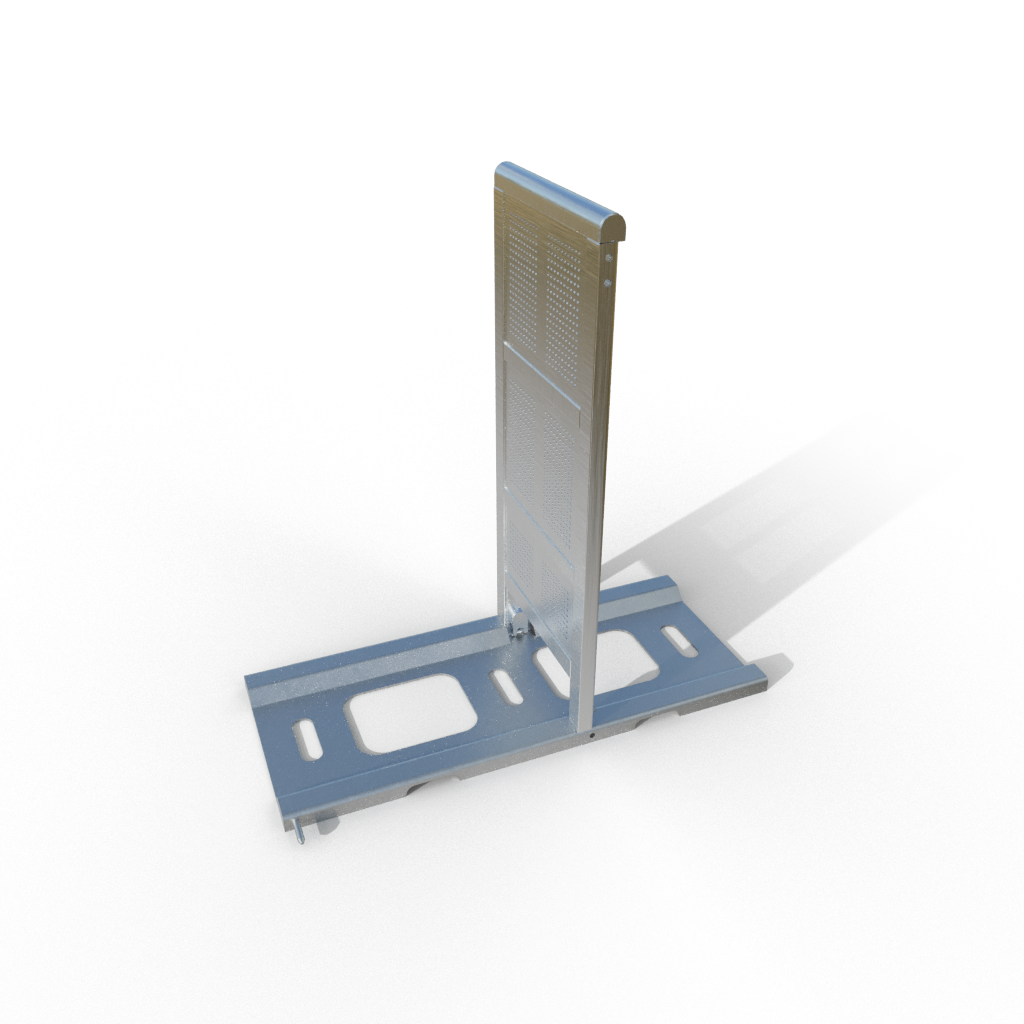

Dutch Barrier’s cable gate 0m50 consists of a treadplate and a removable upright. It does not require half-straight sections on either side. It provides a rock-solid crowd control solution in need of a small cable run. When running cables or smaller cable ramps, simply take out the upright by removing the two top bolts.

Download document

A welded galvanized steel floor and aluminium upright
A treadplate measures 500mm wide and 1185mm deep, the upright measures 500mm wide and 1190mm high
A rounded top rail and welded end caps for the audience’s comfort & and safety
Bottom pin in treadplate and smart ‘locks’ at the bottom of the upright provide for easy setup and alignment
The upright connects to the adjoining barriers by two standard Dutch Barrier bolts. During setup, the crew may take out the upright
The treadplate interconnects at the bottom on either side by one standard Dutch Barrier bolt
Also available with black upright
Weights: Floor 26,2kg, upright 8,2kg
Stored and travel per 20 complete sets in a bespoke stainless steel dolly 10 • Use in high crowd pressure areas: ●●●●● 5/5

This unit will be tested at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test will be available at Dutch Barrier & Dutch Barrier Services upon request.
