- A system constructed entirely from aluminium. Comprising four treadplates, three bumpers and two half bumpers
- A treadplate measures 1000mm wide and 1250mm deep, the bumper measures 500mm wide, 1040mm deep and 1200mm high
- Each walkway has two doors
- A rounded top rail and welded end caps for the audience’s comfort & and safety
- The treadplates are connected using a single standard Dutch Barrier bolt, while bumpers lock securely between them through cleverly positioned pins and holes.
- The half bumper units at the ends of an array seamlessly connect to the adjoining barrier unit
- The half bumper units can be paired as full bumper units
- Weights: Floor 17,6kg, bumper 35,8kg, half bumper 21,6kg, Connector 11,3kg, Floor Connector 2,1kg
- Stored and travel per 4 complete walkways in a bespoke stainless steel dolly DB Dolly LUG
- An extension set of four treadplates and four bumpers also available
- Use in high crowd pressure areas: ●●●○○ 3/5
Subject to change.

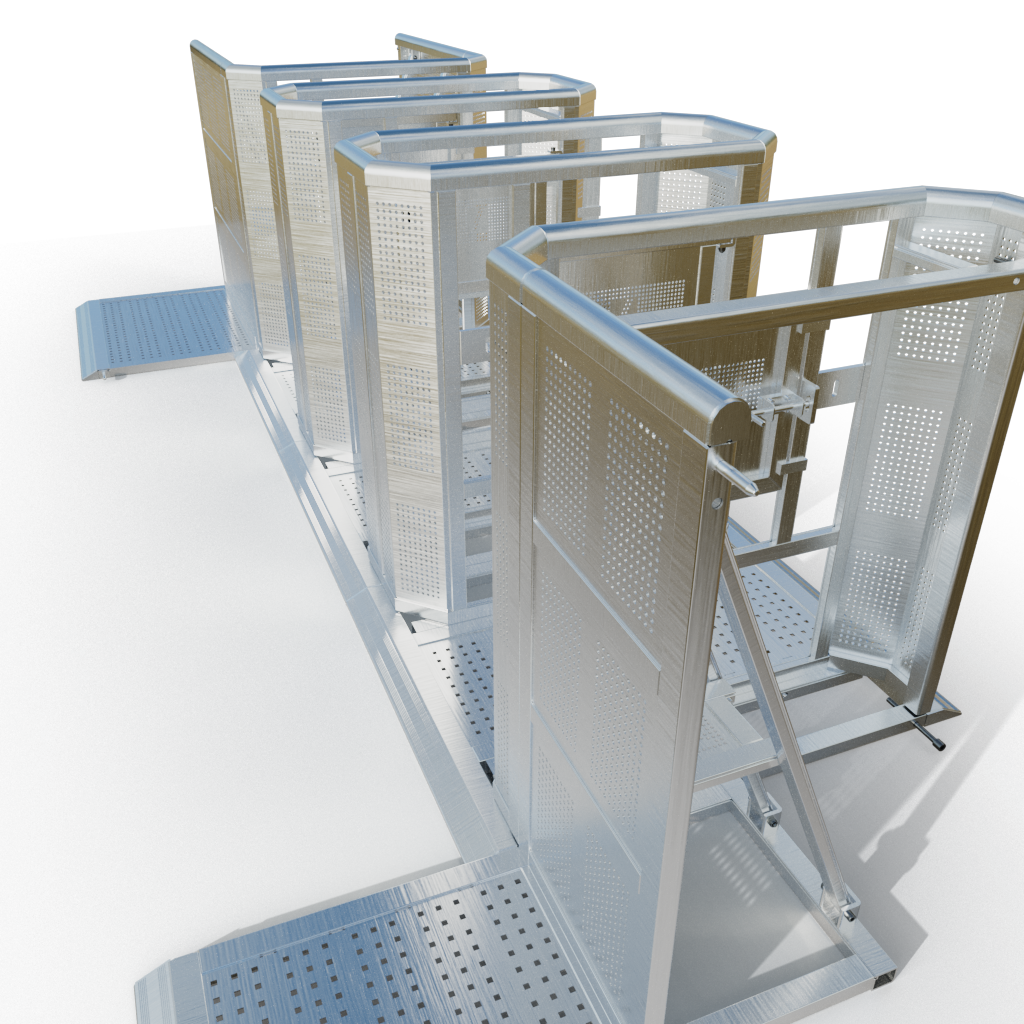

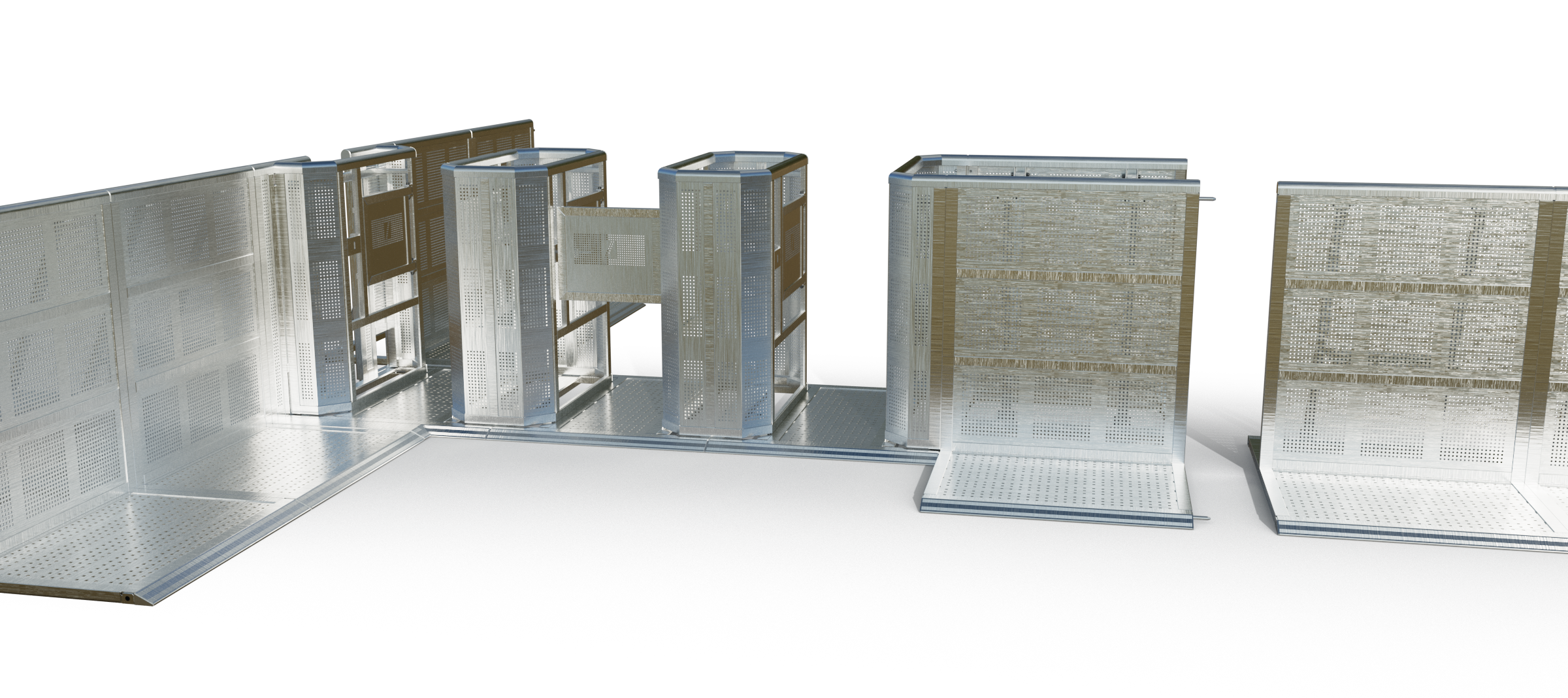

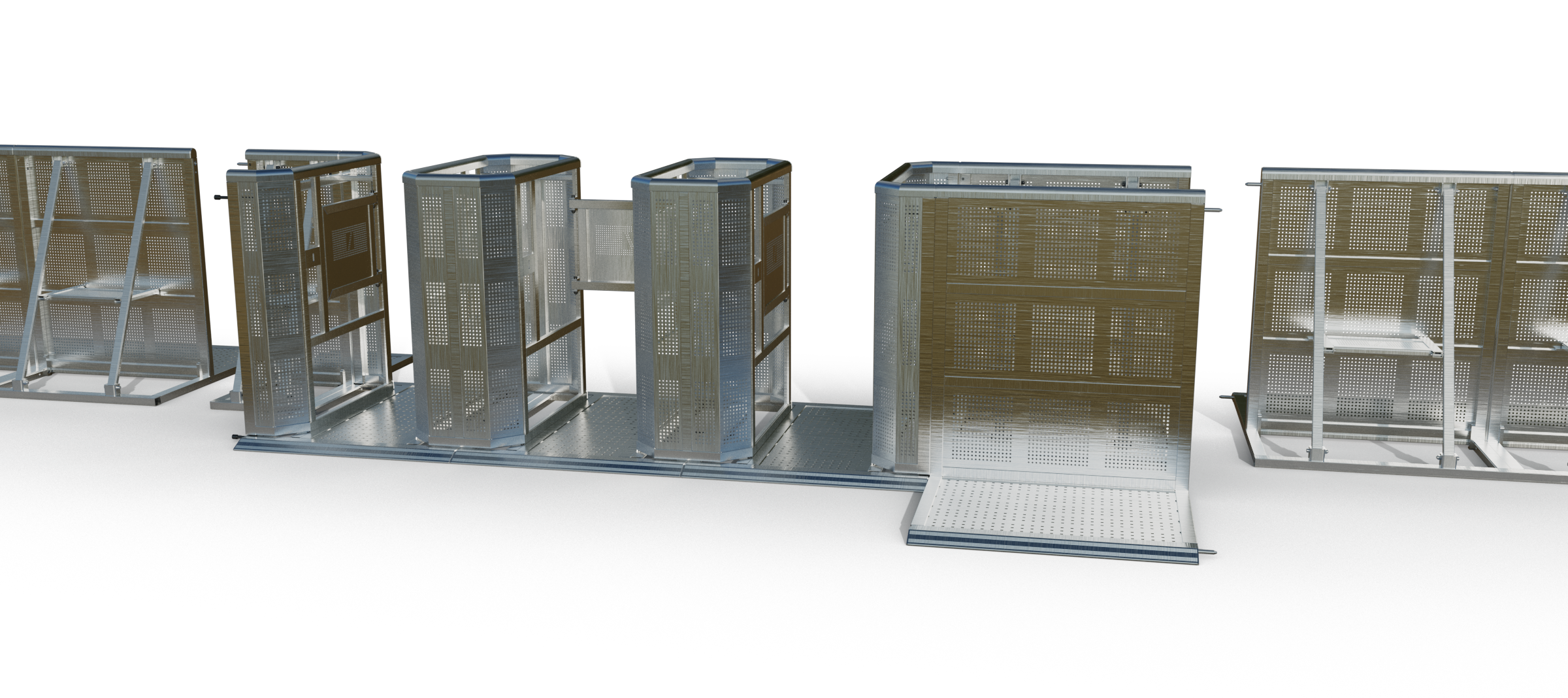

Once assembled, line-up gates create 0m50 wide walkways, separated by bumper units. A standard set comprises three bumpers, two half bumpers to serve as end caps and four treadplates, forming four consecutive walkways. Inside the bumpers, staff can for eample safely perform tasks like ticket-checking. An extension set of four bumpers and treadplates is also available.
