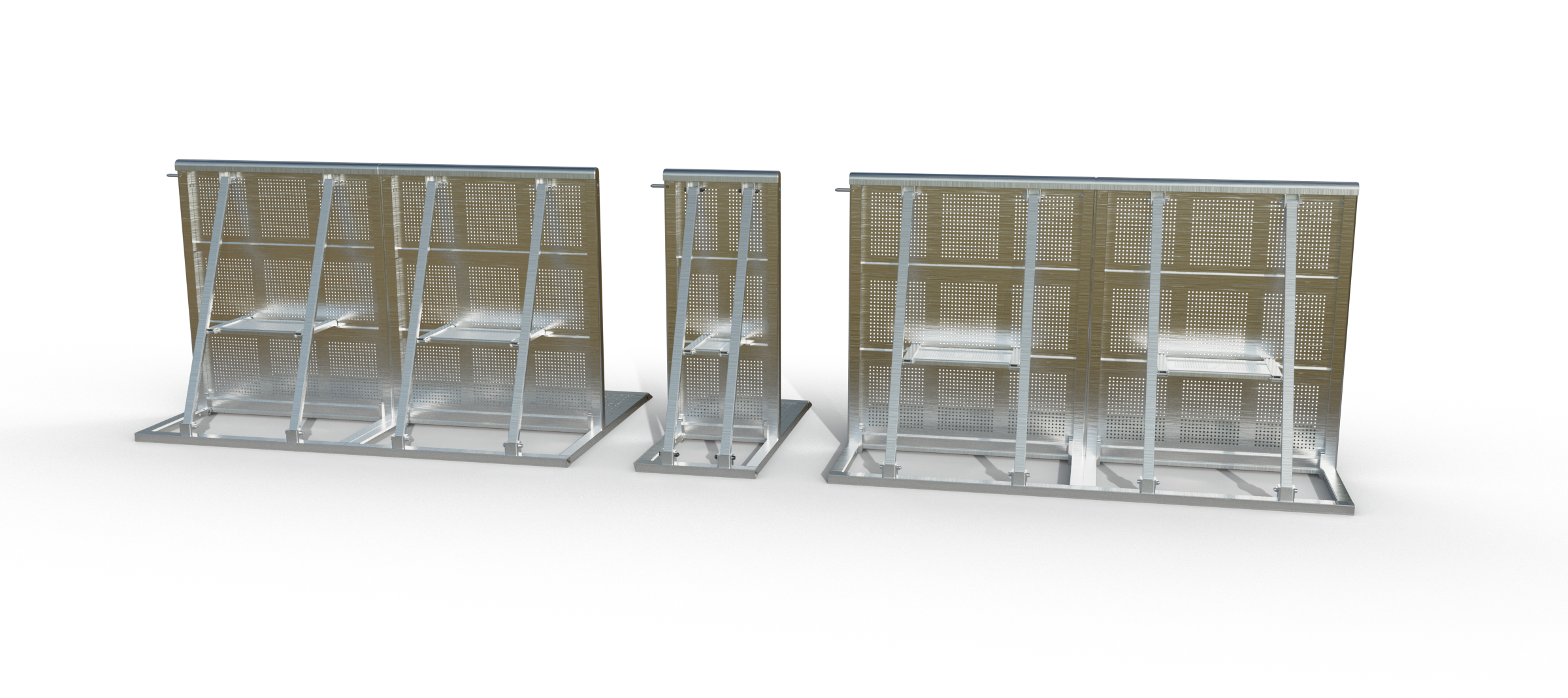

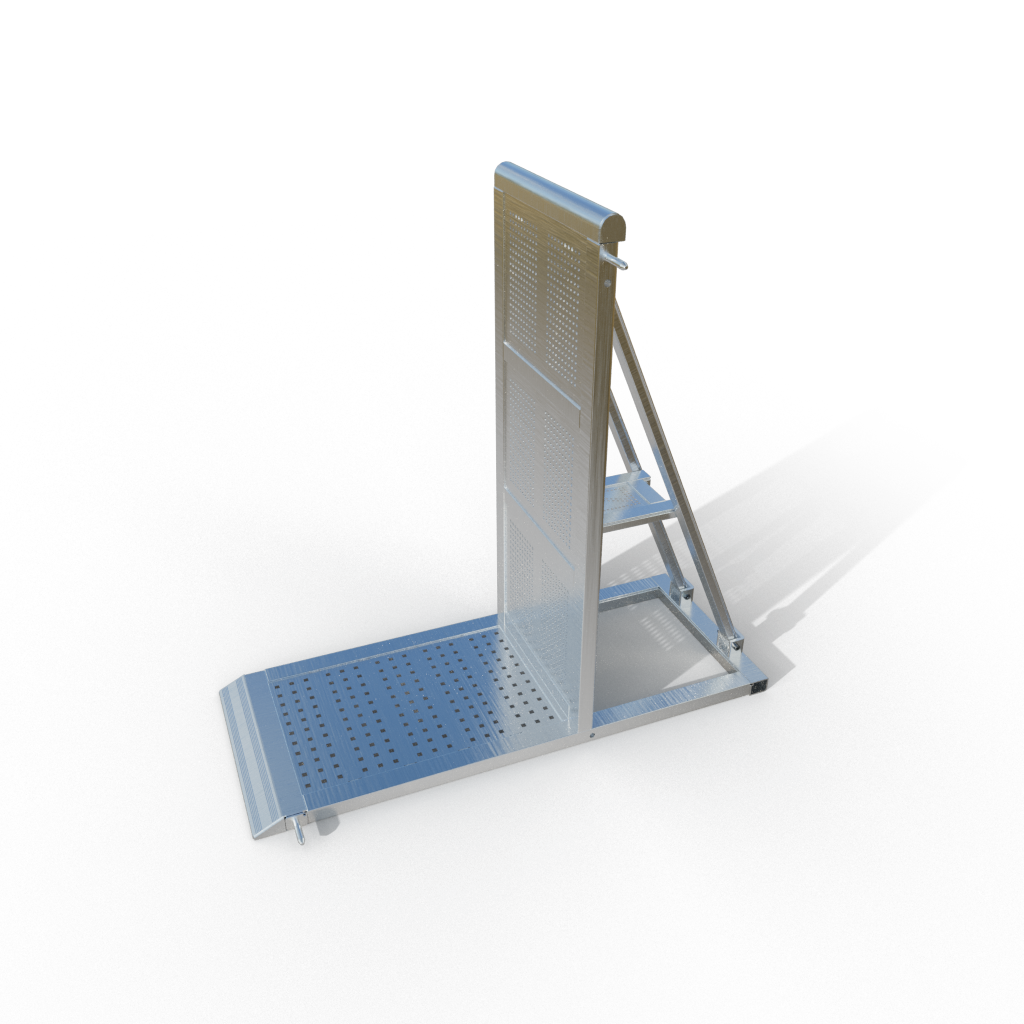

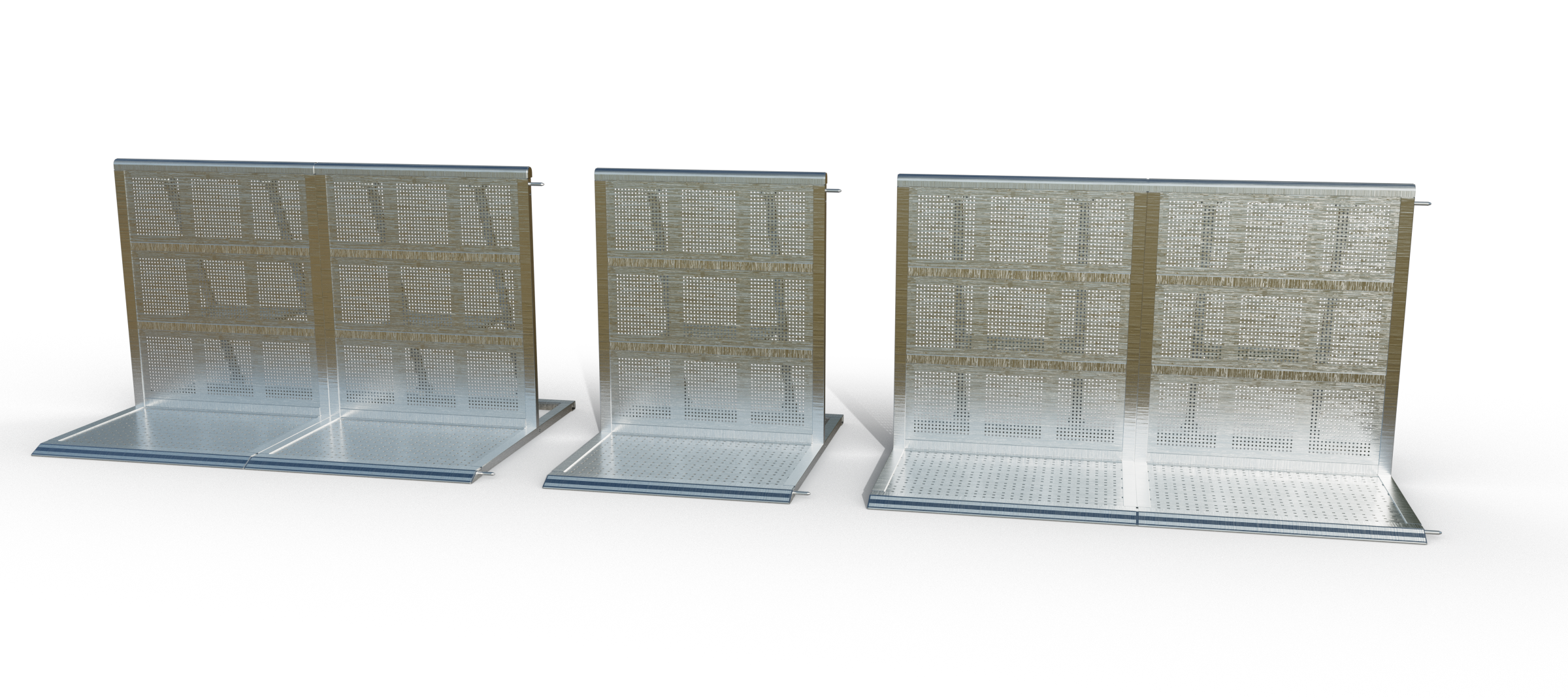

- A solid (foldable) A-frame welded aluminium construction made out of bespoke
extrusion profiles and 4 hinge blocks - One unit measures 500mm wide, 1250mm deep and 1200mm high
- A rounded top rail and welded end caps for the audience’s comfort & and safety
- A punched tread plate prevents liquids from pooling
- An elevated rear step gives security personnel better visibility and makes lifting
people in distress over the barrier easier - Bottom pin provides for easy setup and alignment
- Clever design enables handling without the risk of trapped fingers
- Internal solid blocks allow for added strength and easy insertion of pins and
bolts, as well as an improved lifespan of the whole unit - Locking lips maintain the unit’s upright stability in unbolted condition
- Straight half sections interconnect at the bottom on either side by one standard
bespoke Dutch Barrier bolt, plus one top bolt at the none-gate side - Also available with black upright, braces and step and/or as a true, single-use,
half-section - Weight 24,4kg
- Stored and travel per 14 units in a bespoke stainless steel dolly
- Use in high crowd pressure areas: ●●●●● 5/5
Testing was done at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test are available at Dutch Barrier & Dutch Barrier Services upon request.
