DB Cable Gate 1m50 Set

Dutch Barrier’s cable gate sets are available in 1m00 and 1m50 gate widths. They consist of two half sections, a treadplate and a removable upright. Tested under the same conditions as the straight section, they provide a rock-solid crowd control solution needing a wide cable run. When running cables or cable ramps, simply take out the entire front or swivel it to either side.

Download document

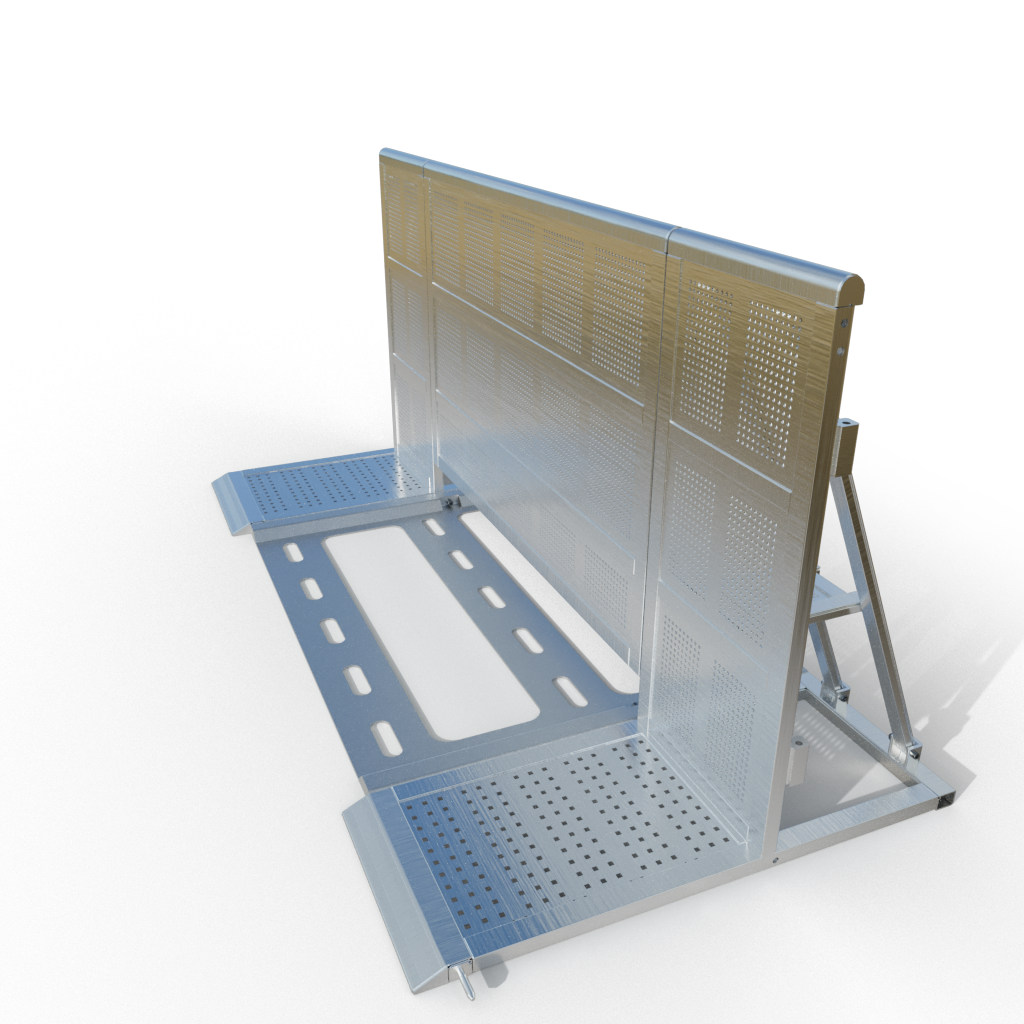

A welded galvanized steel floor and aluminium upright with four heavy-duty hinges in between two straight half sections
Straight half section specs are provided on a separate sheet
A treadplate measures 1500mm wide and 1185mm deep, the upright measures 1490mm wide and 1040mm high
One set measures 2500mm wide, 1250mm deep and 1200mm high
A rounded top rail and welded end caps for the audience’s comfort & and safety
Bottom pin provides for easy setup and alignment
The upright connects to the hinges by four standard Dutch Barrier bolts. During setup, the crew may take out the upright completely or swivel it to either side
The treadplate interconnects at the bottom on either side by one standard Dutch Barrier bolt
Also available with black upright
Weights: Floor 51,6kg, upright 23kg, half meter straight 24,4kg
Stored and travel per 2 complete sets in a bespoke stainless steel dolly 1m50/3m00 GATE
Use in high crowd pressure areas: ●●●●● 5/5

This unit will be tested at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test will be available at Dutch Barrier & Dutch Barrier Services upon request.
