Dutch Barrier - DB Straight 0m50

DB Straight 0m50 - Hinge Blocks

Dutch Barrier’s Straight 0m50 - Hinge Blocks also doubles as a gatepost for several cablegate and gate options when hinges are in use. Therefore, it only has a threadplate pin and requires a mandatory top bolt instead. If required, the Straight 0m50 is available with a top pin and without hinges. They are stored and travel per 14 units in an all-new handling-friendly dolly system.

Download document

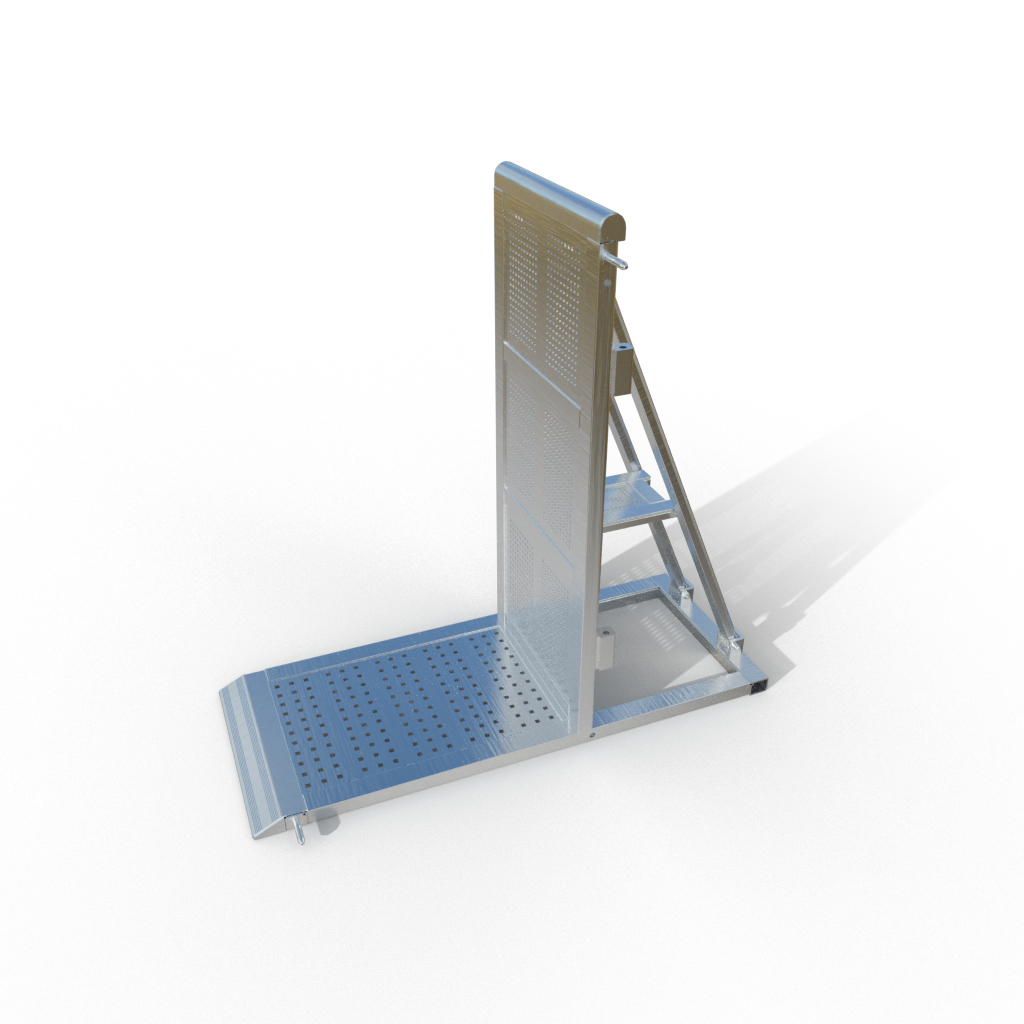

A solid (foldable) A-frame welded aluminium construction made out of bespoke extrusion profiles and 4 hinge blocks
One unit measures 500mm wide, 1250mm deep and 1200mm high
A rounded top rail and welded end caps for the audience’s comfort & and safety
A punched tread plate prevents liquids from pooling
An elevated rear step gives security personnel better visibility and makes lifting people in distress over the barrier easier
Bottom pin provides for easy setup and alignment
Clever design enables handling without the risk of trapped fingers
Internal solid blocks allow for added strength and easy insertion of pins and bolts, as well as an improved lifespan of the whole unit
Locking lips maintain the unit’s upright stability in unbolted condition
Straight 0m50 - Hinge Block sections interconnect at the bottom on either side by one standard Dutch Barrier bolt, plus one top bolt at the none-gate side
Also available with black upright, braces and step and/or as a true, single-use, half-section
Weight 24kg
Stored and travel per 14 units in a bespoke stainless steel dolly
Use in high crowd pressure areas: ●●●●● 5/5

Testing was done at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test are available at Dutch Barrier & Dutch Barrier Services upon request.
