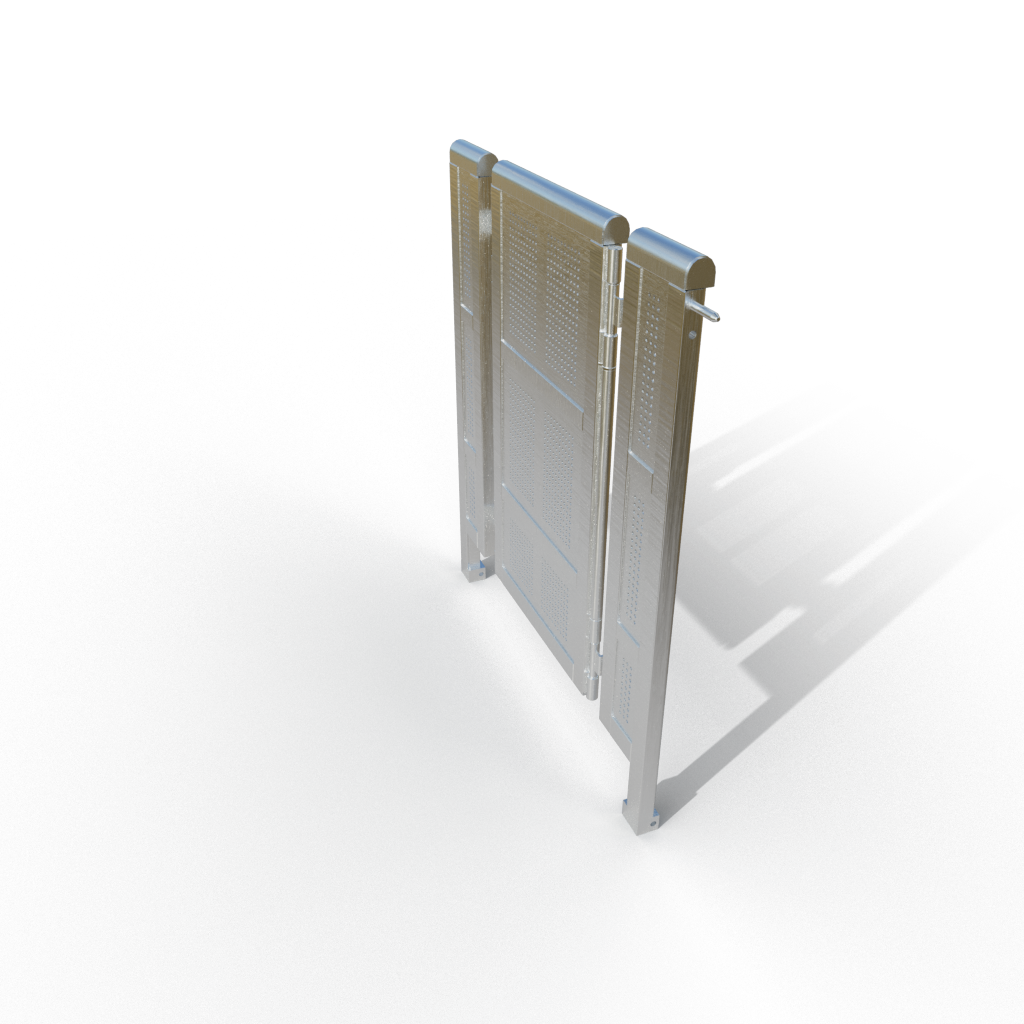

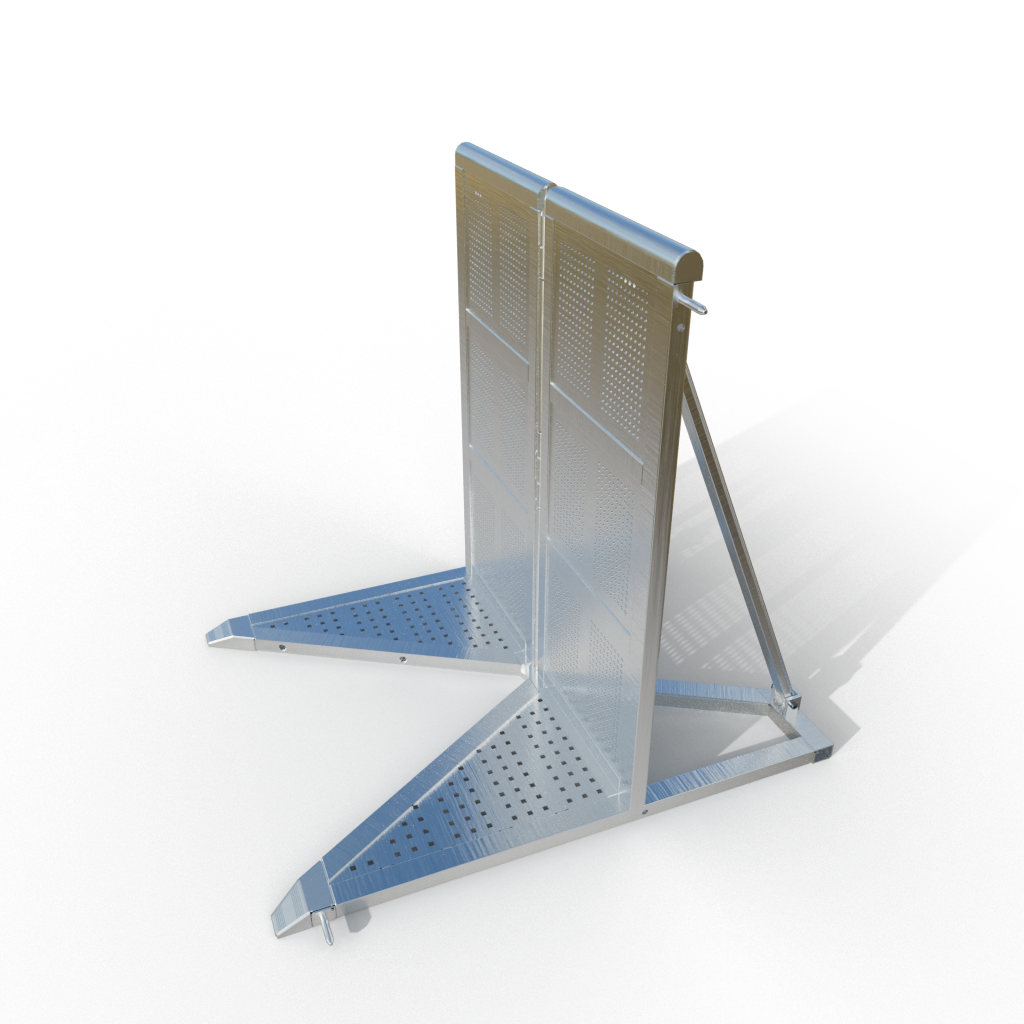

- A solid (foldable) A-frame welded aluminium construction made out of bespoke extrusion profiles. The hinge in the centre of the upright provides for positive and negative corners up to 61°
- One unit measures 1000mm wide, 1250mm deep and 1200mm high
- Infill specs are provided on a separate sheet
- A rounded top rail and welded end caps for the audience’s comfort & and safety
- A punched tread plate prevents liquids from pooling
- Top and bottom pins provide easy setup and alignment
- Clever design enables handling without the risk of trapped fingers
- Internal solid blocks allow for added strength and easy insertion of pins and bolts

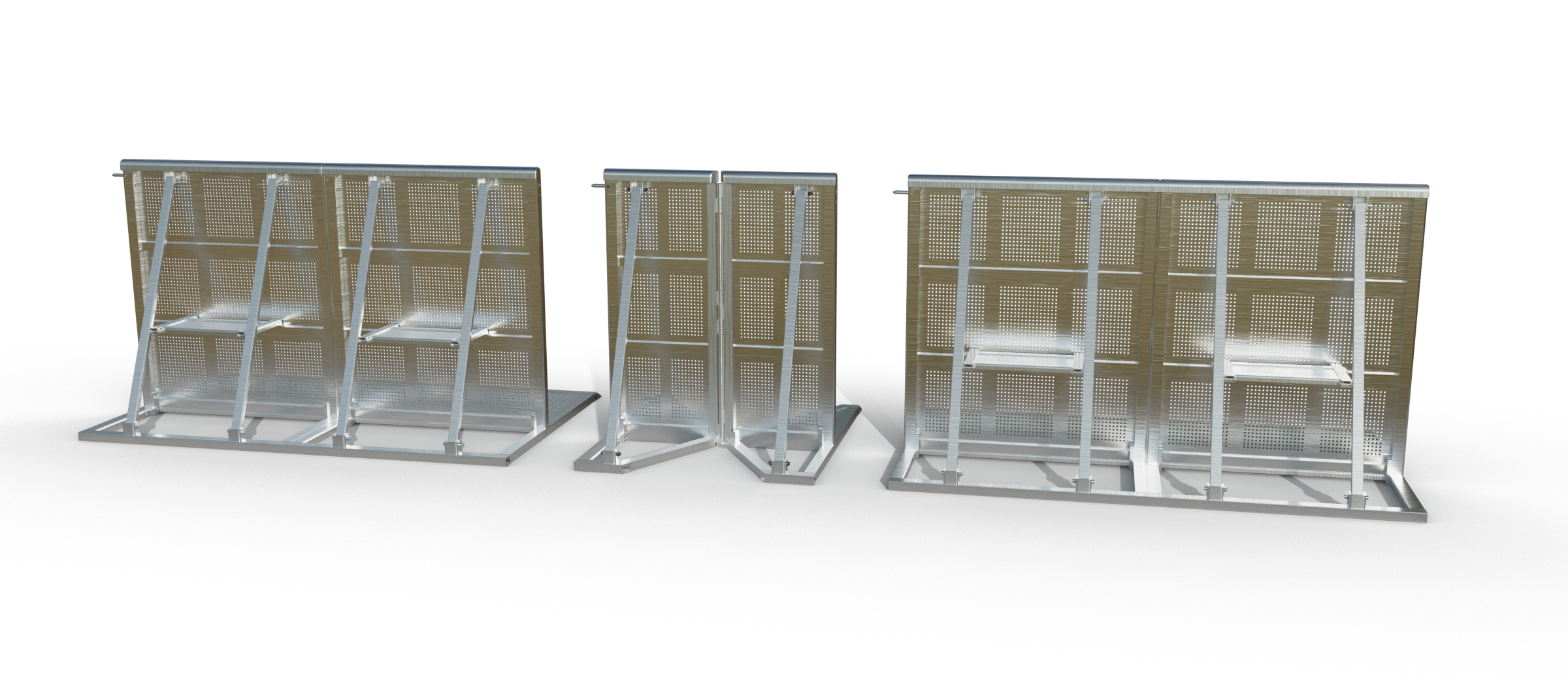

- DB Vario Corner - Infill sections interconnect, under normal conditions, at the bottom on either side by one standard Dutch Barrier bolt. In negative corners top bolts are recommended as well
- Also available with black upright and braces
- Weight 35,2kg
- Stored and travel per 10 units in a stainless steel dolly
- Use in high crowd pressure areas: ●●●●● 5/5
Subject to change.
Testing was done at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test are available at Dutch Barrier & Dutch Barrier Services upon request.
